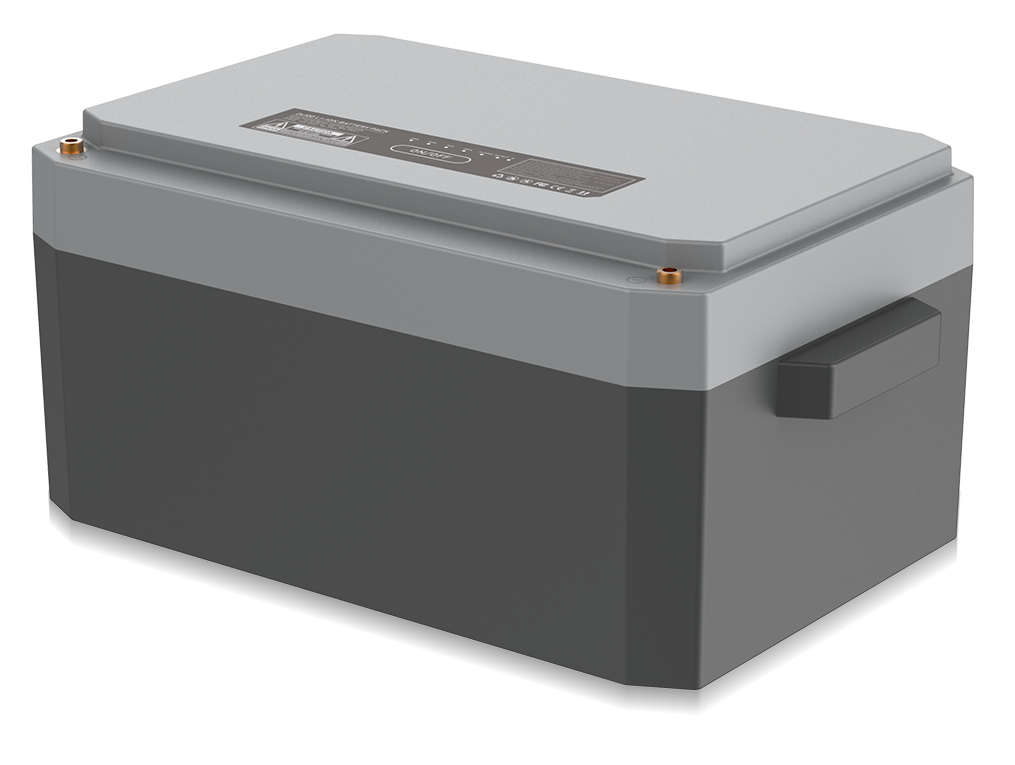

12V200Ah LiFePO4 Safety Intelligent Battery Box

12V100Ah LiFePO4 Intelligent Battery Box

Based on iron phosphate battery, integrated battery management system (BMS)
It can be used as the power source of electric tricycle, electric four-wheel vehicle, electric forklift and other electric equipment

200Ah

CAPACITY
12V

Output Voltage
200A Max

Output Current

LiFePO4 cells, More Safer

Used Lithium iron phosphate (LiFePO4) cells, and the puncture test is not burning,
Extrusion deformation without explosion, working temperature -20 ~ 60 ℃

LiFePO4 BATTERY

Lifecycle ≥ 4000 times
Long Service Life

Through the laboratory battery cycle life test,
More than 4000 charges and discharges,
The capacity of the cell can keep above 85% of original rated

Intelligent Battery Management System (BMS)
Multiple Safety Protection

Real-time detection of voltage, current, temperature, etc.

Over Current Protection
Over Voltage Protection
Over Charge Protection
Over Discharge Protection
Over Temperature Protection
Short Circuit Protection

SPEC

EF4812048V120Ah Smart LiFePO4 Battery Pack

Capacity：

200Ah
Cell Chemistry：

LiFePO4
Lifecycle：

4000+ Times
Input Voltage：

11.6V~14.6V
Charging Current：

200A（Max）
Output Voltage：

12V (max)
Output Current：

400A (Max)
Operating Temp.：

0—50℃
Storage Temp.：

-10—60℃
Waterproof level：

IPX7
Fire-retardant Gradation：

VO
Material：

ABS+PC
Dimensions：

422*242*190mm
Weight：

16.3±0.5kg
